KSG front end alignment tool PDF Print E-mail
Written by Ronald van Maanen
Monday, 25 June 2007

KSG has a setup alignment tool for 12th scale that looks allot like the 10th scale alignment tools. Here is a small description from there site:

Camber angle can be adjusted accurately in the range of ±6 degrees. It can be used to check static camber angle and to verify active chamber changes when the suspension is being compressed. In addition adjustments of toe in and toe out is possible. it comes with ball bearings which should give accurate results.

* It works with front shafts of 1/8 inch size. CRC Generation X front shaft do not fit.

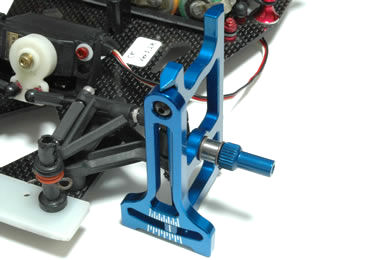

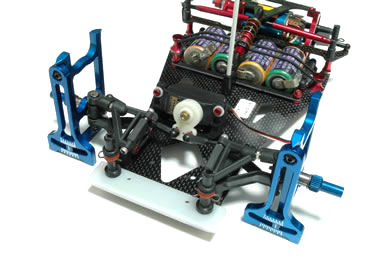

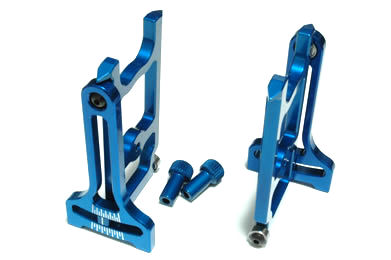

KSG front end alignment tool
KSG front end alignment tool


Source: REDRC and kimihiko-yano

KSG front end alignment tool
KSG front end alignment tool

KSG front end alignment tool
KSG front end alignment tool



Last Updated ( Wednesday, 17 February 2010 )
